Polar Scope and Accessories

A polar scope helps you accurately align your NOMAD with Earth’s axis, improving tracking precision for astrophotography.

Polar Scope A works seamlessly in both hemispheres:
Inner reticle: For users in the Northern Hemisphere
Outer Octans icon: For users in the Southern Hemisphere

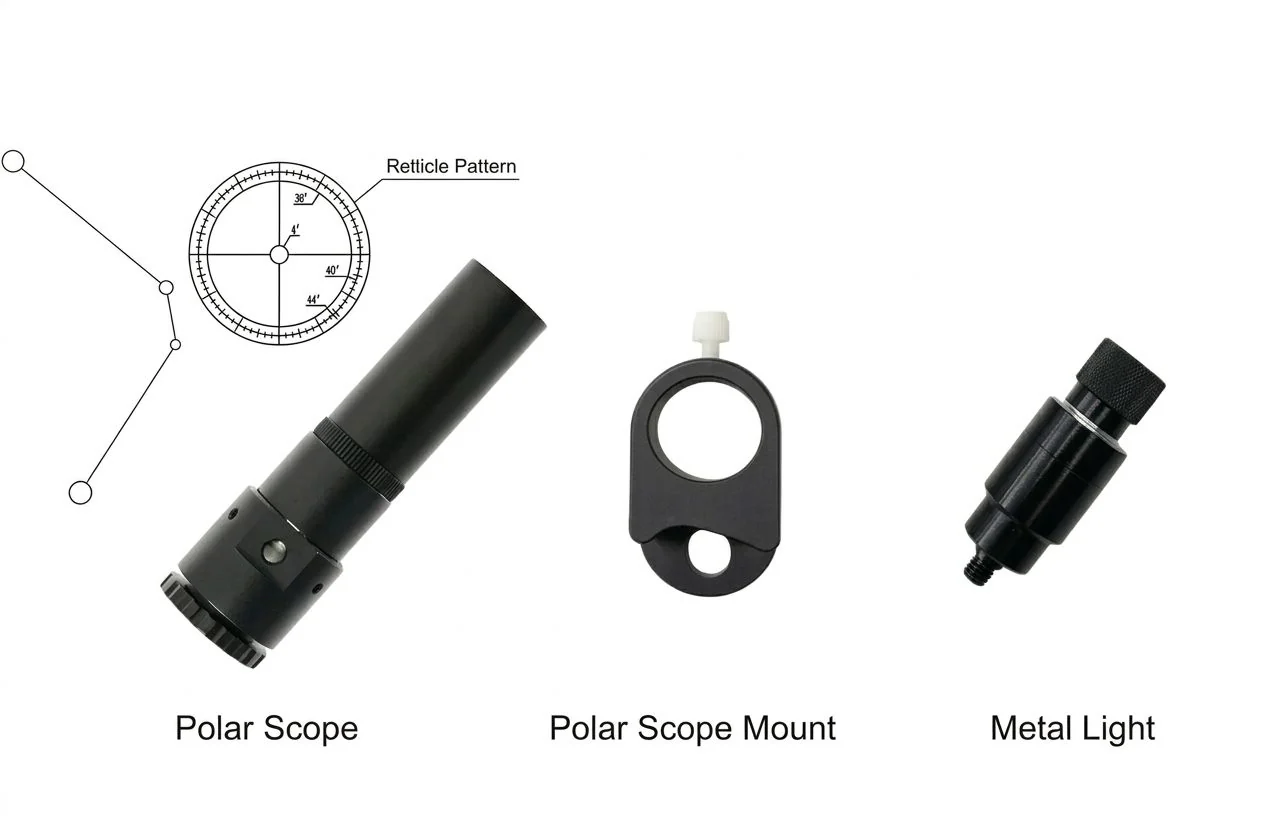

Option 1: Polar Scope A Package For NOMAD

This polar scope Kit is for the NOMAD tracker, it includes:

  • Polar Scope A
  • Polar Scope Mount for NOMAD
  • Fluorescent illuminator (looking like a white tube)

[Click here] to learn how to use it.

Option 2: Polar Scope Mount for NOMAD

If you are an MSM user wanting to upgrade your tracker to NOMA and you are wondering, will my polar scope work on NOMAD?  Yes, your polar scope can work on NOMAD by this polar scope mount.

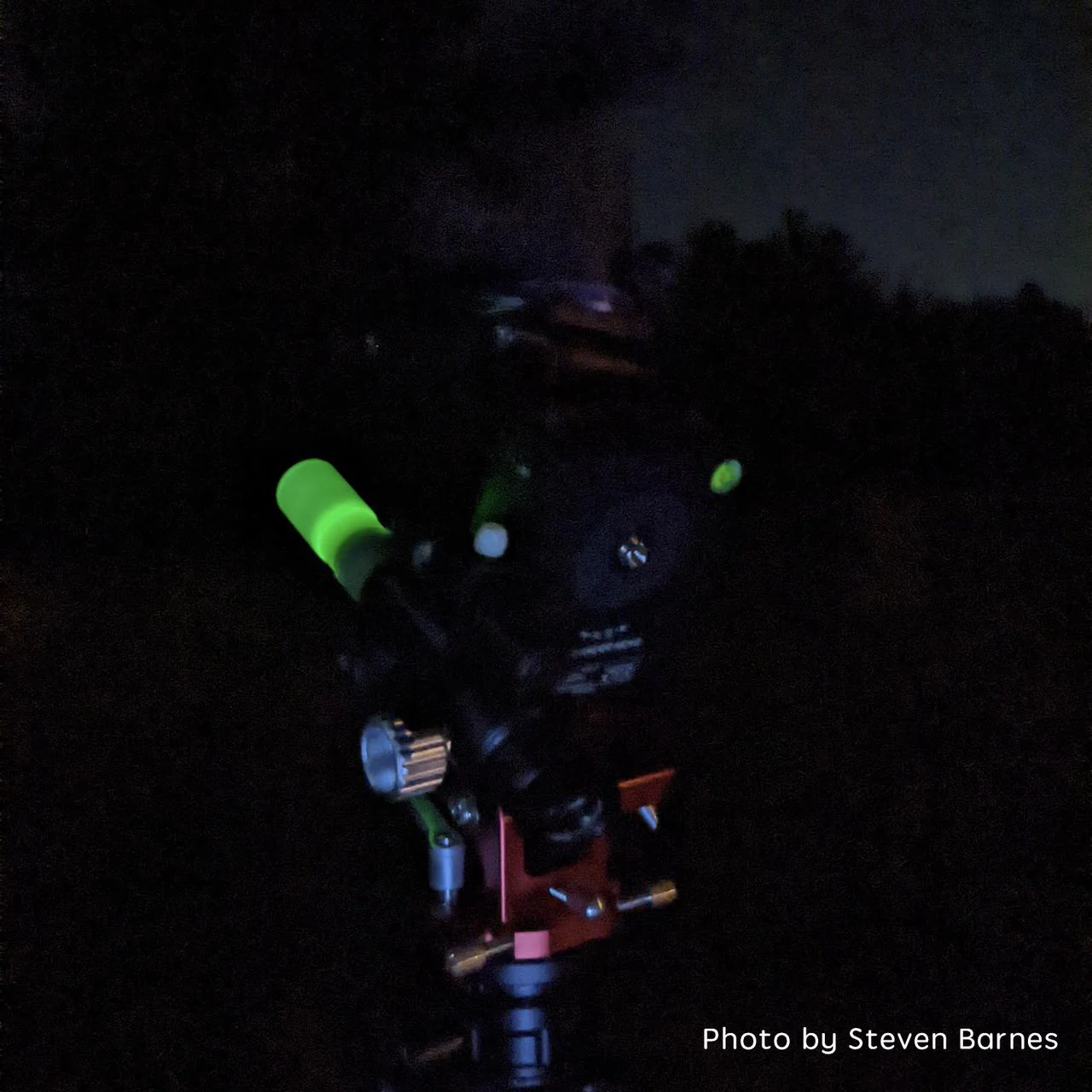

Option 4: Polar Scope Fluorescent Illuminator

The white tube-shaped light is the fluorescent light for the polar scope, attach it to the end of the polar scope. Shine it with a light from a phone or headlamp or others for one minute, then this light will glow in the dark.

Option 5: Metal Polar Scope Illuminator

This CNC polar scope illuminator introduces a red light feature, unlike the illuminator of the previous version. The red light illuminates only the polar scope's reticle without affecting the entire lens screen, making stars easier to observe. The brightness of the red light is adjustable using the top knob.
NOTE: This metal polar scope illuminator is compatible only with MSM Polar Scope A.

Specification:
Color: Black
Bottom Screw: M6×1
Batteries: LR754×2
Weight: 111g
Height: 53.5mm
Note: The light can still work when the MSM right-angle viewfinder is attached to the polar scope.

How to Use the Illuminator:

  1. Install the batteries:
  • Unscrew the illuminator body.

  • Insert two LR754 cell batteries into the battery compartment, ensuring the positive side is facing upward.
  • Screw the illuminator body back together to secure the batteries.
  1. Attach to the polar scope: Screw the illuminator into the threaded hole on Polar Scope A.
  1. Turn on the illuminator: Rotate the top knob to the right to activate the red light.
  1. Align and Fine-Tune: You are ready to do the polar alignment now. During alignment, you can adjust the red light brightness by turning the knob left or right as needed.

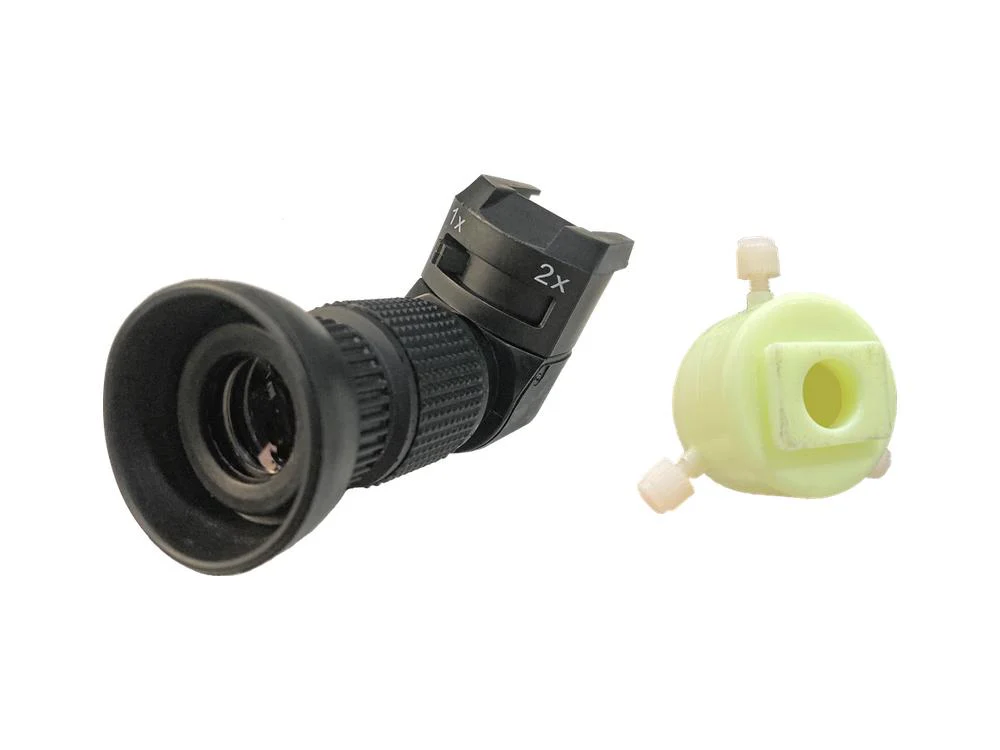

    Option 6: Right Angle Viewfinder + Adapter

    This right-angle viewfinder provides a more ergonomic and comfortable way to look through your polar scope. The eyepiece sits at a 90° angle to the polar scope and can rotate 360° around the scope’s axis. Simply attach it to your polar scope, take your time, and perform a precise, thorough alignment with ease.

    Features:

    • Adjustable diopter for individual eyesight correction
    • Switchable 1x and 2x magnification
    • Multiple click-stop eyepiece positions for flexible viewing angles

      Compatibility

      • MSM Polar Scope A
      • MSM Polar Scope B (unavailable now, replaced by the newest Polar Scope A)
      • Compatible with the polar scope on Skywatcher and the polar scope on iOptron Skyguider Pro.
      • Any Polar Scope with an eyepiece of a contour of a cylinder that has
        • a height greater than 22mm
        • a diameter between 27.3 and 30.3mm
